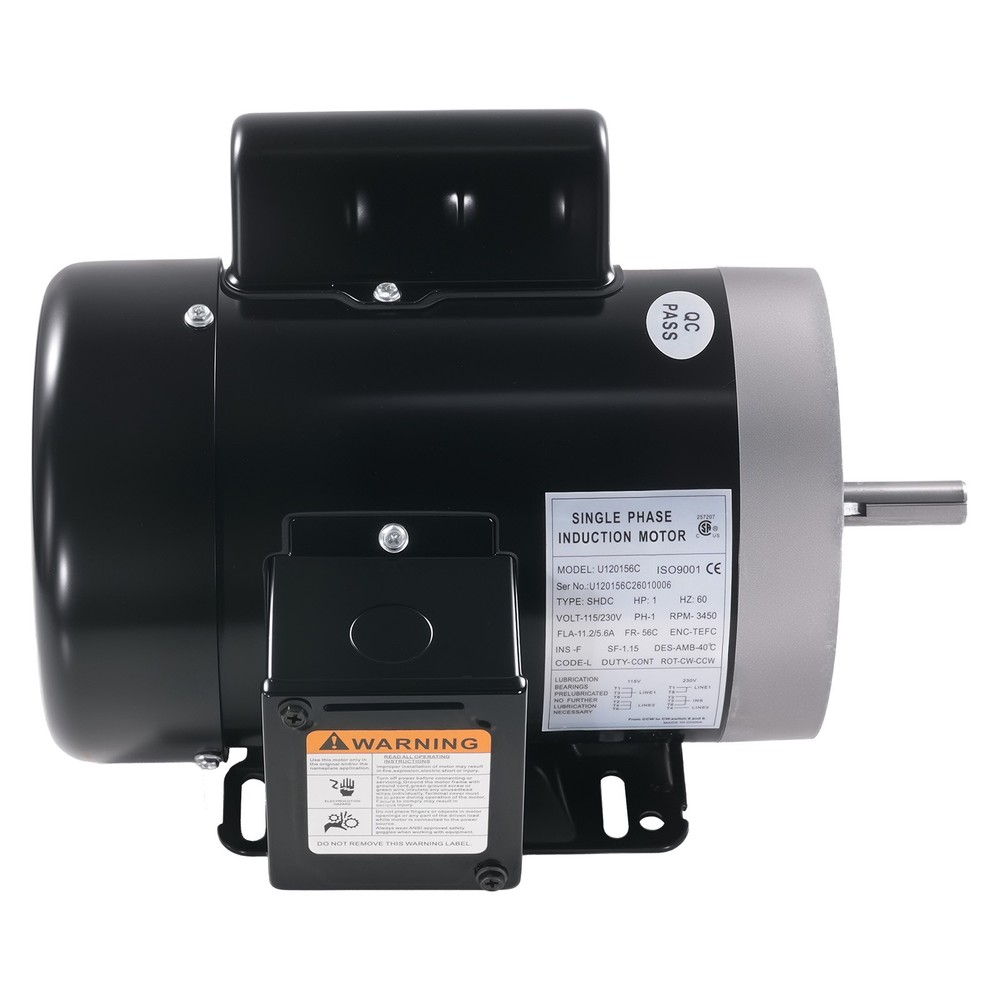

1HP Electric Motor 3450RPM AC115V/230V 56C Frame 1-Phase 5/8″ Keyed Shaft
USD 149.00 USD
Specifications
| AC Frequency Rating | 60 Hz |
| AC Motor Type | Induction/Asynchronous |
| AC Phase | Single Phase |
| Actual Rated Input Voltage | 115V/230V |
| Base RPM | 3450RPM |
| Brand | MaXpeedingrods |
| Country Of Origin | China |
| Enclosure Type | ODP (Open Drip-Proof) |
| Full Load Amps | 13.5/7.0A |
| IEC Frame Size | 56C |
| Insulation Class | F (Max 311°F) |
| IP Rating | IP55 |
| Model | 1HP Electric Motor |
| Mounting Type | Base-Mounted |
| MPN | XHGIWS |
| Nominal Rated Input Voltage | 115 V, 230 V |
| Reversible/Non-Reversible | Non-Reversible |
| Service Factor | 1.15 |
| Shaft Diameter | 5/8 in |
| Shaft Type | Keyed |
| Unit Type | Unit |
Rotational Speed：3450RPM. Rated Load (HP): 1HP. AC Phase: Single Phase. Shaft Type:Keyed. Service Factor: 1.15. CCW Rotation Facing Shaft. Overall Length With Shaft: 12.4". Shaft Length: 1.88".
