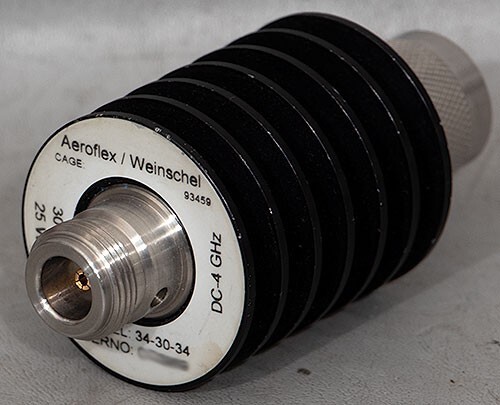

Aeroflex/API/Weinschel 34-30-34 30 dB 25 W DC-4 GHz RF Type-N Attenuator WA34
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Brand | Weinschel Associates |
| MPN | 34-30-34 |
Aeroflex/API/Weinschel 34-30-34 30 dB 25 W DC-4 GHz RF Type-N Attenuator Comes with what you see in the pictures. If you don't see it, you probably won't get it. Specifications are from Weinschel Associates and may vary slightly due to upgrades, options, or revisions this unit may or may not have. These units are guaranteed to work. The Unit's Information Reads: Model Number: 34-30-34 Serial Number: Multiple Available. Specifications: 30 dB, 25 W, DC-4 GHz, Bi-directional Model Number Description: Basic Module Number: 34 Attenuation Value: 30 dB Connector Options: J1: Type-N(F) J2: Type-N(M) Features: Optimized for Wireless OEM & Test Applications. Precision Connectors with high temperature support beards. Designed to meet environmental requirements of MIL-DTL-3933. Specifications: Nominal Impedance: 50 Ω Frequency Range: DC to 4.0 GHz Maximum Deviation of Frequency: Nominal Attenuation: 30 dB Deviation: DC - 2 GHz: ±0.60 dB 2 - 4 GHz: ±1.00 dB Maximum SWR1: DC - 2 GHz: 1.10 SWR 2 - 4 GHz: 1.20 SWR Power Rating (Mounted Horizontally) 25 Watts average (bi-directional) to 25°C ambient temperature, derated linearly to 2.5 watts @ 125°C. 5 kilowatt peak (5 µsec puse width; 0.25% duty cycle). Power Coefficient: < 0.0006 dB/dB/watt Temperature Coefficient: < 0.0004 dB/dB/°C Temperature Range: -55°C to +125°C Construction: Black, finned aluminum body, gold plated beryllium copper contacts. Weight: 170 g (6 oz.) maximum Physical Dimensions: 1.53" Dia. x 2.80" L For Domestic Customers: Packaging, handling, and order processing included in shipping in all domestic shipments as quoted by the shipping calculator. For International Customers there is a $10.00 minimum for packaging, handling, and order processing. International shipping to be determined by destination. Prior to shipment I will need to know the following information (filled out on a form that I will send you) for International Customers or Packages/Freight being Forwarded internationally. International customers may also be subject to a freight forwarder form if applicable.: (1) Are you the end-user of this item? (2) If you are not the ultimate end-user of the item, please state the ultimate end user's name. (3) What is the ultimate country destination? 09/27/24
