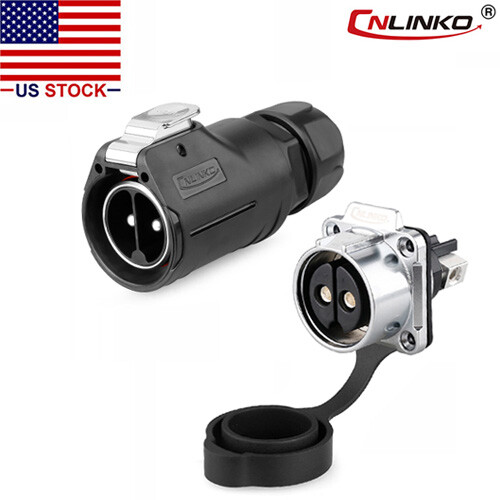

CNLINKO 2 Pin 50A Power Connector Male Plug & Female Socket Waterproof IP67
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Compatible Wire Gauge (AWG) | 6 AWG |
| Country/Region Of Manufacture | China |
| Contact Material | Copper |
| Current Type | AC/DC |
| Connecting Mode | Plug/Unplug |
| IP Rating | IP67 |
| Certificate | UL, CE, RoHS |
| Shell Size | M28 |
| Minimum Operating Temperature (Actual) | -40°C |
| Maximum Operating Temperature (Actual) | 80°C |
| Brand | CNLINKO |
| Minimum Operating Temperature (Nominal) | -40°C |
| Maximum Operating Temperature (Nominal) | 80°C |
| Body Material | ABS & Zinc |
| Termination Type | Screw Locking |
We are the only authorized eBay retailer for "CNLINKO" brand connector products, with complete warranty. Selling Items Model Number: Plug: LP-28-C02PE-21-001Socket: LP-28-J02SX-23-401 Features: 2 cores for power and signal, desgined for diversity of industrial demandRated current 50A, operation voltage 500VAC, outdoor, waterproof IP67Gold-plated contacts, high-strength corrosion resistance and electrical conductivity, effective response to temperature changes in currentPBT material of the protective housing, with characters of fire safety, compression, anti-explosion and anti-deformationQuick click-on coupling, screw locking termination, easy installation Specification: Cable specification13m㎡/6 AWGDiameter range Φ18mm～Φ20mmContact diameter × numberΦ6.0x2Rated Current (A)50AOperating voltage (AC.V.rms)500V Contact resistance<1mΩTemperature rise N/AWithstanding Voltage (AC.V) 1 minute2500VInsulation resistance＞500MΩProtection level IP67Durability≥500 timesWorking temperature-40℃～80℃Connecting modePlug/unplugAssembly wireScrew LockingHousing, the insulating partsHigh-performance engineering plastics Hardware Zinc Alloy (pearl hard chrome) Copper needlesCopper alloy (gold-plated 4U) Waterproof circleSilica gelFlammability ratingUL94-V0
