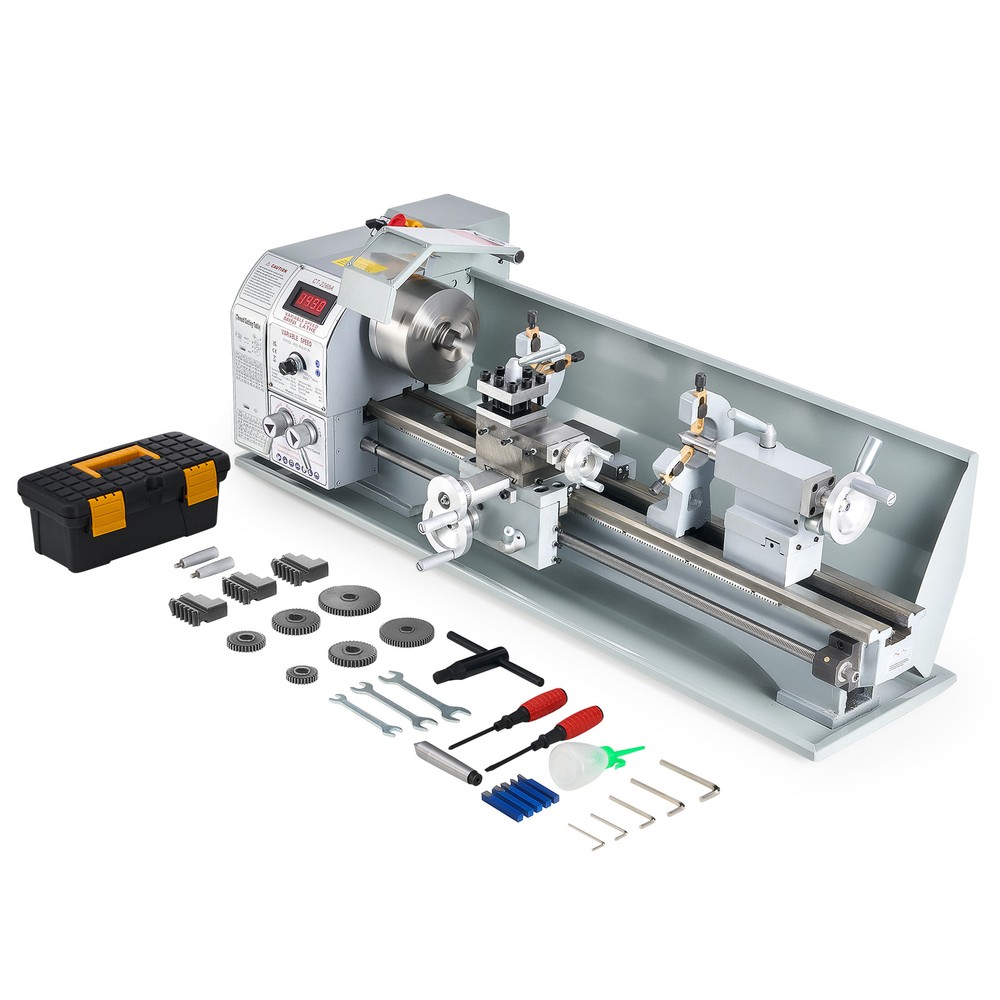

CREWORKS 9×24″ Mini Metal Lathe 1100W Brushless Motor 3000rpm Benchtop 3-Jaw
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Max Spindle Speed (RPM) | 2501 - 3000 |
| Brand | Creworks |
| Control | Automatic |
| Phase | Single |
| Treated Material | Metal |
| Machine Type | Metal Lathe |
| Distance Between Centers | 21 in - 30 in |
| Swing Over Bed | Less than 10 in |
| Power Source | Electric |
| Motor Type | Brushless Motor |
| Motor Power | 1.5HP (1100W) |
| Voltage | 110V/60Hz |
| Spindle Bore | 1.5" (φ38mm) |
| Chuck Diameter | 4.92" (125mm) |
| Taper Of Spindle | MT#5 |
| Taper Of Tailstock | MT#2 |
| Spindle Speed | 50-2250±10% RPM |
| Spindle Accuracy | 0.01mm |
Specifications Material: Cast Iron, Stainless Steel, ABS Rated Power: 1100W Motor Type: Brushless Spindle Bore: 1.5 in. (38 mm) Swing Over Bed: 8.7 in. (220 mm) Tailstock Taper: MT#2 Spindle Taper: MT#5 Metric Thread Range: 0.3-3 mm Inch Thread Range: 8-44 tpi Center Distance: 23.6 in. (600 mm) Chuck Diameter: 5 in. (125 mm) Max. Spindle Speed: 3000 rpm Product Dimensions: 39.6 x 13.8 x 16.9 in. (100.5x35x43 cm) Net Weight: 158.7 lb. (72 kg) Packing List 1 x Mini Metal Lathe 1 x Steady Rest 1 x Follow Rest 5 x Brazed Carbide Tools 2 x Screwdrivers 5 x Hex Wrenches 1 x Dead Center 3 x Wrenches 2 x Slideway Levers 3 x Chuck Jaws 1 x Chuck Wrench 1 x Spare Fuse 1 x Bottle for Cutting Oil 6 x Metal Change Gears 1 x Tool Box 1 x Instructions Mini Yet Powerful: Measuring only 40x14 in., this mini metal lathe by Creworks packs a punch with its 1100W brushless motor, making it ideal for tackling small to medium metalworking projects. It provides an 8.7 in. swing over bed and 23.6 in. distance between its centers with a 1.5 in. spindle bore. Complete Control: The mini metalworking machine's rotational speed can be set from 0 to 3000 rpm and monitored through the real-time digital display. The well-crafted head and tailstocks, large through-hole, and 4-way tool post also contribute to providing greater control of your work. Precise Engineering: Ideal for professionals, this benchtop mini metal lathe's high-precision 5-inch 3-jaw chuck handles both square and round objects with equal aplomb. Its granular precision is especially useful for jobs requiring high accuracy such as threading. Ultra Sturdy & Safe: The robust cast iron construction ensures a long service life and superior corrosion resistance. The transparent chuck guard protects you from swarf or broken tools while also permitting visibility into the point of operation. Wide Application: Tailored for precision tasks, this mini woodworking lathe effortlessly handles turning, drilling, threading, and cutting. Its capabilities extend to various materials, including wood, plastics, brass, aluminum, and more! Specifications Material: Cast Iron, Stainless Steel, ABS Rated Power: 1100W Motor Type: Brushless Spindle Bore: 1.5 in. (38 mm) Swing Over Bed: 8.7 in. (220 mm) Tailstock Taper: MT#2 Spindle Taper: MT#5 Metric Thread Range: 0.3-3 mm Inch Thread Range: 8-44 tpi Center Distance: 23.6 in. (600 mm) Chuck Diameter: 5 in. (125 mm) Max. Spindle Speed: 3000 rpm Product Dimensions: 39.6 x 13.8 x 16.9 in. (100.5x35x43 cm) Net Weight: 158.7 lb. (72 kg) Packing List 1 x Mini Metal Lathe 1 x Steady Rest 1 x Follow Rest 5 x Brazed Carbide Tools 2 x Screwdrivers 5 x Hex Wrenches 1 x Dead Center 3 x Wrenches 2 x Slideway Levers 3 x Chuck Jaws 1 x Chuck Wrench 1 x Spare Fuse 1 x Bottle for Cutting Oil 6 x Metal Change Gears 1 x Tool Box 1 x Instructions Mini Yet Powerful: Measuring only 40x14 in., this mini metal lathe by Creworks packs a punch with its 1100W brushless motor, making it ideal for tackling small to medium metalworking projects. It provides an 8.7 in. swing over bed and 23.6 in. distance between its centers with a 1.5 in. spindle bore. Complete Control: The mini metalworking machine's rotational speed can be set from 0 to 3000 rpm and monitored through the real-time digital display. The well-crafted head and tailstocks, large through-hole, and 4-way tool post also contribute to providing greater control of your work. Precise Engineering: Ideal for professionals, this benchtop mini metal lathe's high-precision 5-inch 3-jaw chuck handles both square and round objects with equal aplomb. Its granular precision is especially useful for jobs requiring high accuracy such as threading. Ultra Sturdy & Safe: The robust cast iron construction ensures a long service life and superior corrosion resistance. The transparent chuck guard protects you from swarf or broken tools while also permitting visibility into the point of operation. Wide Application: Tailored for precision tasks, this mini woodworking lathe effortlessly handles turning, drilling, threading, and cutting. Its capabilities extend to various materials, including wood, plastics, brass, aluminum, and more! On May 27, 2024 at 11:56:40 PDT, seller added the following information:
