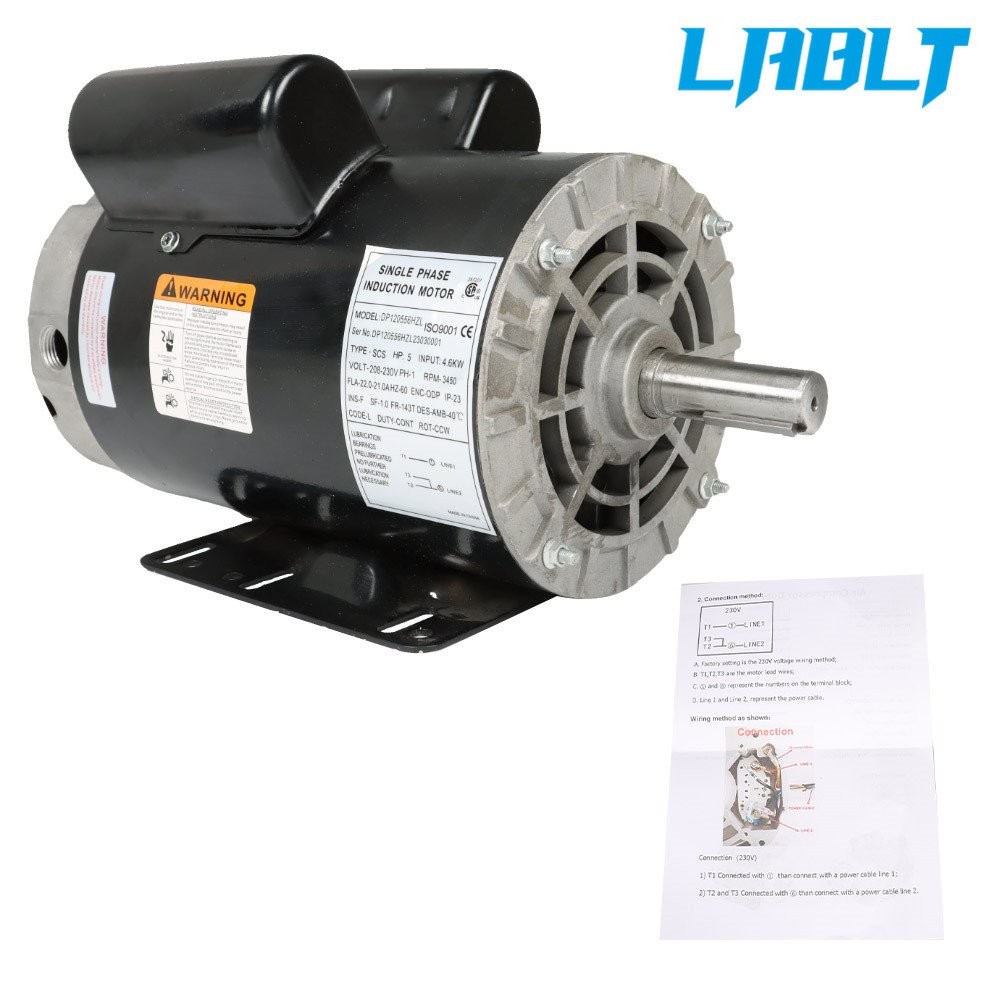

LABLT 5 HP Electric Motor Single Phase 230 V 3450 RPM 56 HZ ODP 7/8”Shaft
USD 175.28 USD
Specifications
| Country Of Origin | United States |
| Brand | LABLT |
| MPN | OM225972OC |
| Enclosure Type | ODP (Open Drip-Proof) |
| AC Phase | Single Phase |
| IEC Frame Size | 56Hz/143T |
| Shaft Type | Keyed |
| Design | Open Drip Proof (ODP) |
| Shaft Diameter | 7/8 in |
| Model | EM-05 |
| Nominal Rated Input Voltage | 230 V |
| Service Factor | 1.00 |
| AC Frequency Rating | 60 Hz |
| Insulation Class | F (Max 311°F) |
| Base RPM | 3450 RPM |
| Color | Multi-Color |
| Mounting Type | Base-Mounted |
| Warranty | 1 Year |
Description: Open Drip Proof (ODP) Single Phase 5 HP 3450 RPM 60hz 230 Volts AMB 40 °C Frame: 56HZ/143T Duty: Cont. Compressor Service Factor: 1.0 Full Load Amps: 21 INS. CL: F Non-reversible, CCW Rotation Facing Shaft Thermally Protected Overall Length W/O Shaft: 12.5" Overall Length With Shaft: 14.85" Overall Height: 8.65" Overall Width: 6.6" Shaft Diameter: 7/8" Shaft Length: 2.25" Standard Size Keyway: 3/16" Features Manual Reset Overload Protection .
