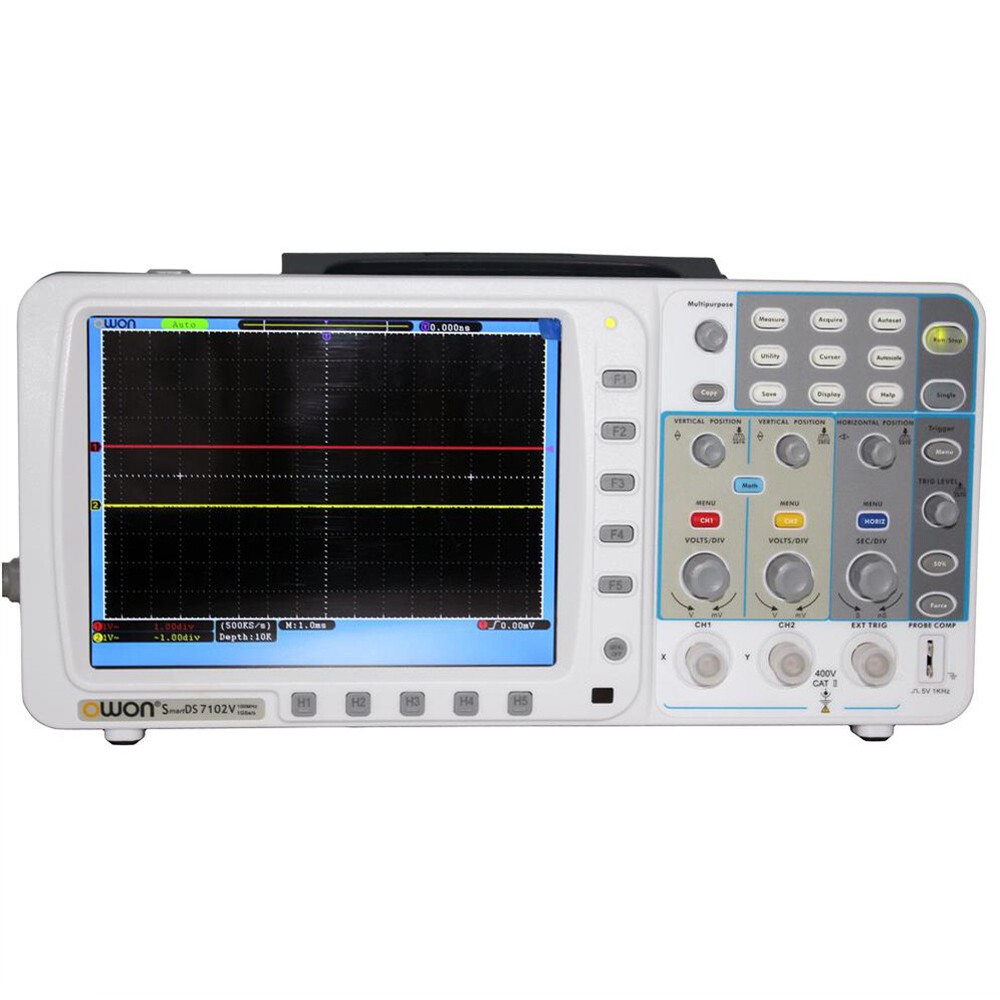

Newest low-noise OWON 100Mhz Oscilloscope SDS7102V FFT 1G LAN+VGA limited time
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 14 Days |
| Refund Will Be Given As | Money Back |
| Model | SDS7102V |
| Country/Region Of Manufacture | China |
| Oscilloscope Type | Digital Oscilloscope |
| Bandwidth | 100MHz - 349MHz |
| Sample Rate | 1GSa/s - 1.9GSa/s |
| Type | Digital |
| MPN | SDS7102V |
| Brand | OWON |
Newest low-noise Ultra-thin 100Mhz OWON Digital Storage Oscilloscope SDS7102V 1G/s Sample rate, Large 8" LCD, 10M points Record length, FFT, free lifetime firmware upgrade Brand new with 3 yrs warranty, manufacturer pay for shipping back for warranty problemDetails 100MHz with dual channels; - 1GS/s sample rate; - 10M record length for each channel; - Large 8-inch 800x600 pixels display; - Autoscale function ; - Pass/Fail function; - Smart design with easy workplace; - Multiple interface：USB；VGA；LAN - Dimension: 340mm(L)×155mm(H)×70mm(W) - Weight: 1.8kg (without battery) Application Electronic circui debugging Circuit testing Design and manufacture Education and training Automobile maintenance and testing Model SDS7102V Vertical SystemVertical resolution (A/D)8 bits Resolution (2 channels simultaneously )Vertical sensitivity2mV/div～10V/div(at input)Displacement ±1V(2mV～100mV), Analog Bandwidth 100MHz Single bandwidthFull bandwidthlow frequency≥ 5HzRise time (at input, typical) ≤3.5ns DC gain accuracy±3%DC accuracy(Average)Average﹥16: ±(3% rdg + 0.05 div) for △VMeasurementCursor measurement△V and △T between cursorsAutomatic measurementVpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time,Fall Time, DelayA→B , DelayA→B , +Width, -Width, +Duty, -DutyWaveform Math＋, －, ×, / ,FFTWaveform storage15 waveformsLissajou’s figureBandwidthFull bandwidthPhase difference±3 degreesCommunication interfaceUSB, support USB flash disk storage, SVGATriggerTrigger level range±6 divisions from screen centerTrigger level accuracy±0.3divHorizontal Trigger displacementPre-trigger: 655 div,Post-trigger: 10 divTrigger Holdoff range100ns～10sEdge triggerRising、FallingPulse TriggerTrigger conditionPositive pulse：＞、＜、＝ negative pulse：＞、＜、＝Pulse width range24ns～10sVideo TriggerNTSC、PAL、SECAMSlope TriggerTrigger conditionPositive pulse：＞、＜、＝ negative pulse：＞、＜、＝Time setting24ns～10sAlternate TriggerEdge, Pulse, Video, SlopeWaveform recordWaveform quantity1～1000Interval time1ms～1000sDisplay8" color LCD,TFT display,800x600 pixels,65535 colorsPower Supply100～240VAC RMS, 50/60Hz, CAT IIPower consumption< 18WDimension Weight340mm(L)×155mm(H)×70mm(W) 1.8kg (without battery) Accessories:1) 2 units of 100Mhz probes;2) Power cord for your country;3) Driver CD;4) USB cable;5) VGA version with LAN module; Shipping: USA order ( ship to USA address) will ship from our USA warehouse with track number eBay Cross Border Trade powered by Channel Effect
