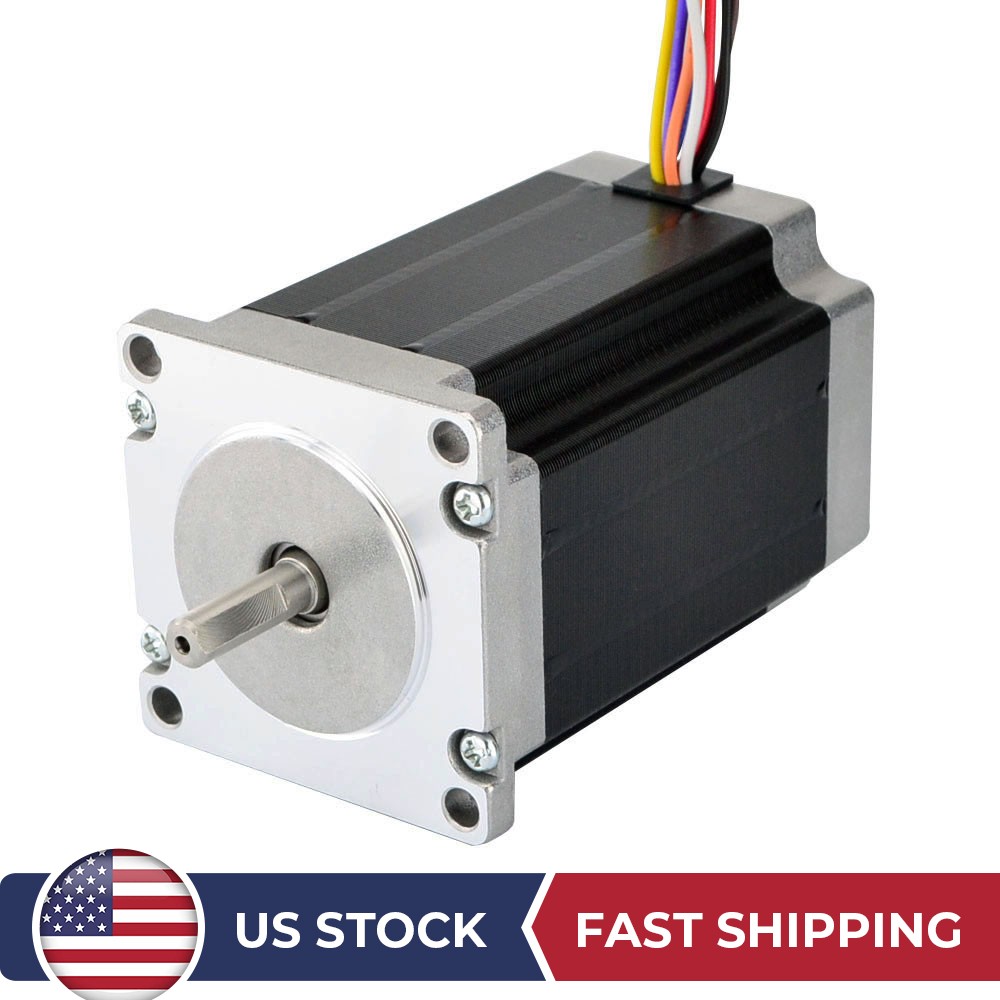

STEPPERONLINE Dual Shaft Nema 23 Uni/Bipolar 1.8deg 400oz.in 4A 57x84mm 8 Wires

STEPPERONLINE Dual Shaft Nema 23 Uni/Bipolar 1.8deg 400oz.in 4A 57x84mm 8 Wires

USD 40.00 USD

SKU: Syagoybj

Brand: StepperOnline

MPN: 23HS33-4008D

GTIN: 701056534548

Condition: New

Tags: 0.4ohms 0.8ohms 0701056534548 1.6ohms 1.8mH±20%(1KHz) 15mm 2.83A 21mm 23HS33-4008D 4-Wire Bipolar 4.0A 5.66A 7.2mH±20%(1KHz) 701056534548 China STEPPERONLINE Φ6.35mm

Categories: Fasteners & Hardware

Specifications

Country Of Origin	China
Brand	StepperOnline
Shaft Diameter	Φ6.35mm
MPN	23HS33-4008D
UPC	701056534548
EAN	0701056534548
Rear Shaft Length	15mm
Front Shaft Length	21mm
Rated Current(Bipolar Serial)	2.83A
Rated Current(Bipolar Parallel)	5.66A
Rated Current(Unipolar)	4.0A
Phase Resistance(Bipolar Serial)	1.6ohms
Phase Resistance(Bipolar Parallel)	0.4ohms
Phase Resistance(Unipolar)	0.8ohms
Inductance(Bipolar Serial)	7.2mH±20%(1KHz)
Inductance(Bipolar Parallel)	1.8mH±20%(1KHz)
Inductance(Unipolar)	1.8mH±20%(1KHz)

This nema 23 stepper motor with step angle 1.8deg, a holding torque(bipolar) of 2.83Nm(400oz. in), a holding torque(unipolar) of 2.0Nm(283oz. in) and size 57x57x84mm. It has 8 wires, which have three connection options: Unipolar or Bipolar(Serial) or Bipolar(Parallel), you can choose any type as you wish.
