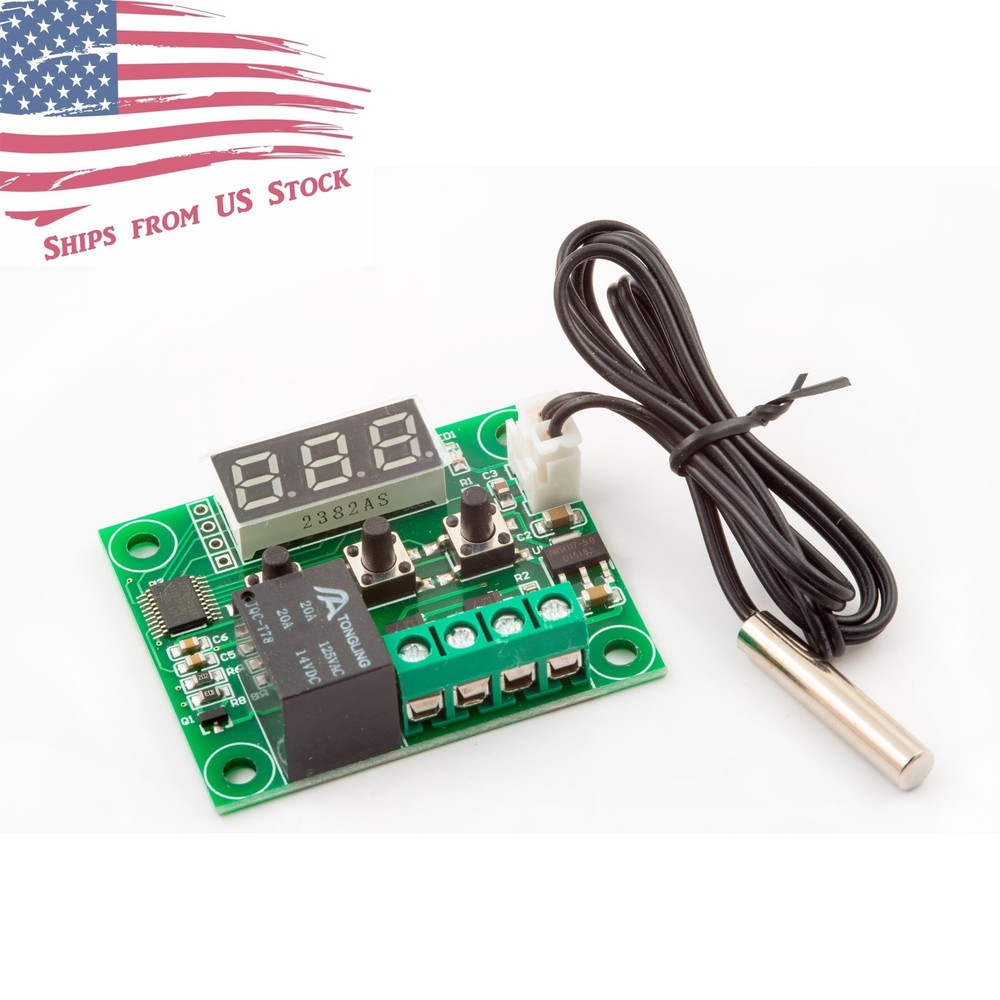

W1209 24V -50 – 110C Digital Thermostat Temperature Control Switch Sensor Module
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Voltage | 24 V |
| Country/Region Of Manufacture | China |
| MPN | W1209 24V |
| Sensor Type | Thermistor |
| Analog/Digital | Digital |
| Brand | Envistia |
| Model | W1209 24V |
| Unit Type | Unit |
Control your temperature with the W1209 Digital Thermostat Module! This versatile 24V thermostat offers a wide temperature range of -50°C to +110°C, perfect for managing heaters, coolers, or fans. Set your desired temperatures easily using the intuitive onboard buttons and monitor real-time readings on the clear 3-digit display. With a sturdy relay capable of switching up to 10A at 16V DC or 20A at 120VAC, it’s designed for various electrical devices. Plus, the included waterproof NTC sensor ensures precision. Ideal for home automation, aquariums, or incubators. Enjoy fast shipping from Colorado and take advantage of our FREE USPS Ground Advantage Shipping with tracking! W1209 24V -50°C to +110°C Digital Thermostat Temperature Control Switch Sensor Module The W1209 is a low cost yet highly functional thermostat controller. This module intelligently controls power to most types of electrical devices based on the temperature sensed by the included high accuracy NTC remote temperature sensor. The cooler, heater, or fan is connected to a power supply (either DC or AC) through the relay contacts K0 and K1, and the temperature on/off setpoints are programmed into the W1209 using the onboard Set, Increase, and Decrease buttons and display. The relay contacts are then open and closed, acting as a power switch for the cooler/heater, based on the temperature measured by the NTC temperature sensor (included with the module) and the setpoints programmed into the W1209 controller. A 24V DC power supply or battery powers the module. Although this module has an embedded microcontroller, no programming knowledge is required. 3 tactile switches allow for configuring various parameters including on & off trigger temperatures. The on-board relay can switch up to a maximum of 20A at 16V DC, or 10A at 125V AC. The current temperature is displayed in degrees Centigrade via its 3 digit seven segment display and the current relay state by an on-board LED. Specifications:Temperature Control Range: -50 C to +110 C (NOTE: All temperatures are in Celsius, not Fahrenheit)Resolution at -9.9 to 99.9: 0.1 CResolution at all other temperatures: 1 CMeasurement Accuracy: 0.1 CControl Accuracy: 0.1 CRefresh Rate: 0.5 SecondsInput Support Power (DC): 24V. The maximum current draw is 65mA (operates the module, does not power the load). NOTE: The maximum input support voltage should not exceed 24V +/-10%. The silkscreen on the circuit board input is marked 12V, but the input for this model is 24V, not 12V. The voltage marked on the relay indicates the module's actual voltage. Measuring Input: NTC (10K 0.5%)Waterproof Sensor: 0.3M (~1 ft) cableProbe tip dimensions: 20mm long x 4mm diameterDisplay Color: Blue Output: 1 Channel Relay Output, Capacity: 10A at 16VDC, 20A at 125VACPower Consumption: Static Current: <=35mAMaximum Operating Current: <=65mAEnvironmental Requirements:Temperature: -10 ~ 60 CHumidity: 20-85%Dimensions & Weight:48mm x 40mm x 14mm (1.9" x 1.6" x 0.6") (LxWxH)Weight: 19 grams (Controller - 16 grams; temperature sensor and cable - 3 grams)The display defaults to showing the measured temperature.Short press the "SET" button and then press "+" and "-" buttons to raise or lower the temperature setpoint. Long press the “SET” button to activate the menu in order to change the P0 through P6 parameters listed in the Settings Chart below.The setpoint and all parameter settings are stored in nonvolatile memory and will be retained if power to the controller is turned off. Settings Chart:Code: Description / Range / Default ValueP0: Set Heating or Cooling Mode / C/H / CP1: Hysteresis Set / 0.1C - 15C / 2CP2: Upper Temperature Limit / 110C / 110CP3: Lower Temperature Limit / -50C / -50CP4: Temperature Calibration / -7.0C ~ 7.0C / 0CP5: Delay Start Time / 0-10 mins / 0 minsP6/P7: High Temperature Alarm / 0C - 110C / OFFP8: Factory Reset (Not included in all firmware versions. Can also be reset by pressing and hold the + and - buttons for 5 seconds.) Package Includes:W1209 24V -50°C - 110°C Digital Thermostat Temperature Control Switch Sensor ModuleNTC 10K Temperature Sensor with ~12 inch (0.3M) cableOnline installation and operating instructions (Available in English and Spanish / Disponible en inglés y español) Need a longer probe? See our 1 Meter long NTC Thermistor Probe here. Looking for a 12V W1209 (with 12V support power)? See our W1209 12V -50-110°C Digital Thermostat Temperature Control Switch Sensor Module. Get it faster! Stocks and ships from our US Colorado office for quick delivery. We provide FREE USPS Ground Advantage Shipping with Tracking - Not Economy ShippingW1209 12V -50-110°C Digital Thermostat Temperature Control Switch Sensor + Case.
